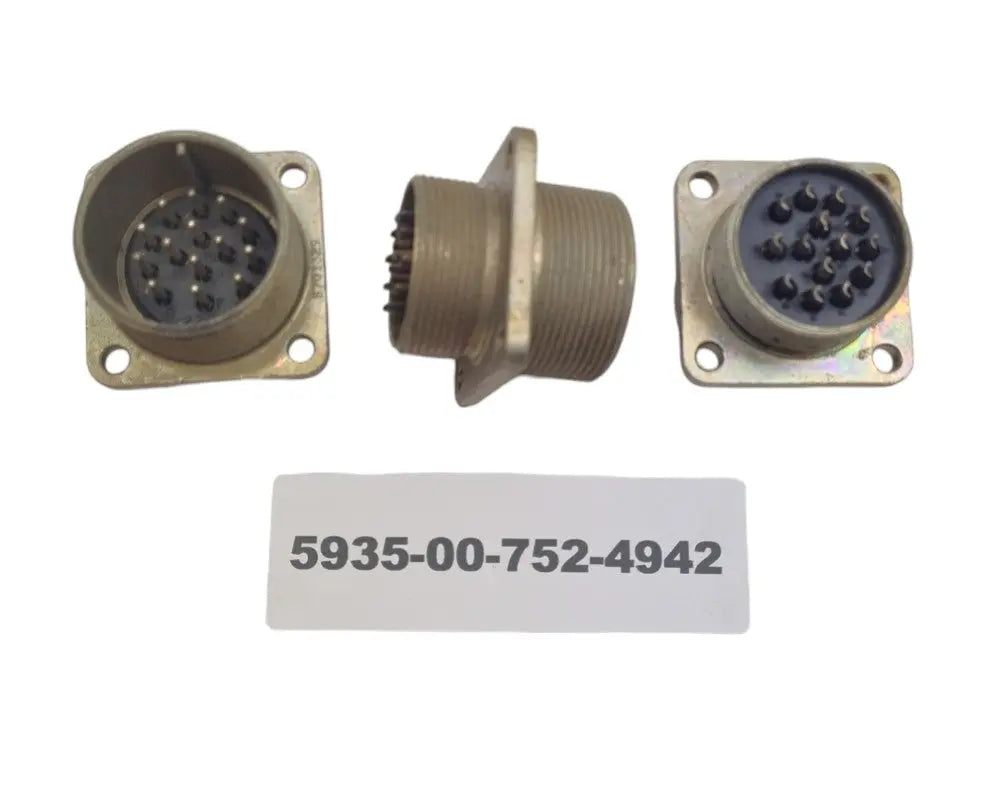

5935-00-752-4942 - 14 pin Electrical Socket - 256-75-24942 - 8701329 -

Technical Characteristics
III BODY STYLE
(AAQL) STRAIGHT SHAPE, EXTERNAL COUPLING
BODY STYLE
(AAQL) STRAIGHT SHAPE, EXTERNAL COUPLING
CONNECTOR LOCKING METHOD
(AFRV) EXTERNALLY THREADED SHELL
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS
(AFRD) 500.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY
(AFQZ) NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS
(AFRC) 13.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS
(AFRE) 700.0 SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT QUANTITY
(CXCG) 14 SINGLE MATING END SINGLE CONTACT GROUPING
INSERT POSITION IN DEG
(AFRP) 0.0
OVERALL HEIGHT
(ABKW) 1.605 INCHES MINIMUM AND 1.645 INCHES MAXIMUM
OVERALL LENGTH
(ABHP) 1.904 INCHES NOMINAL
OVERALL WIDTH
(ABMK) 1.605 INCHES MINIMUM AND 1.645 INCHES MAXIMUM
MATING END QUANTITY
(AFQW) 1
POLARIZATION METHOD
(AFRN) KEYWAY OR MULTIPLE KEYWAY
SHELL TYPE
(AFRT) SOLID
THREAD CLASS
(AAJD) 2A
THREADED DEVICE TYPE
(AFQR) BACK SHELL AND COUPLING FACILITY
