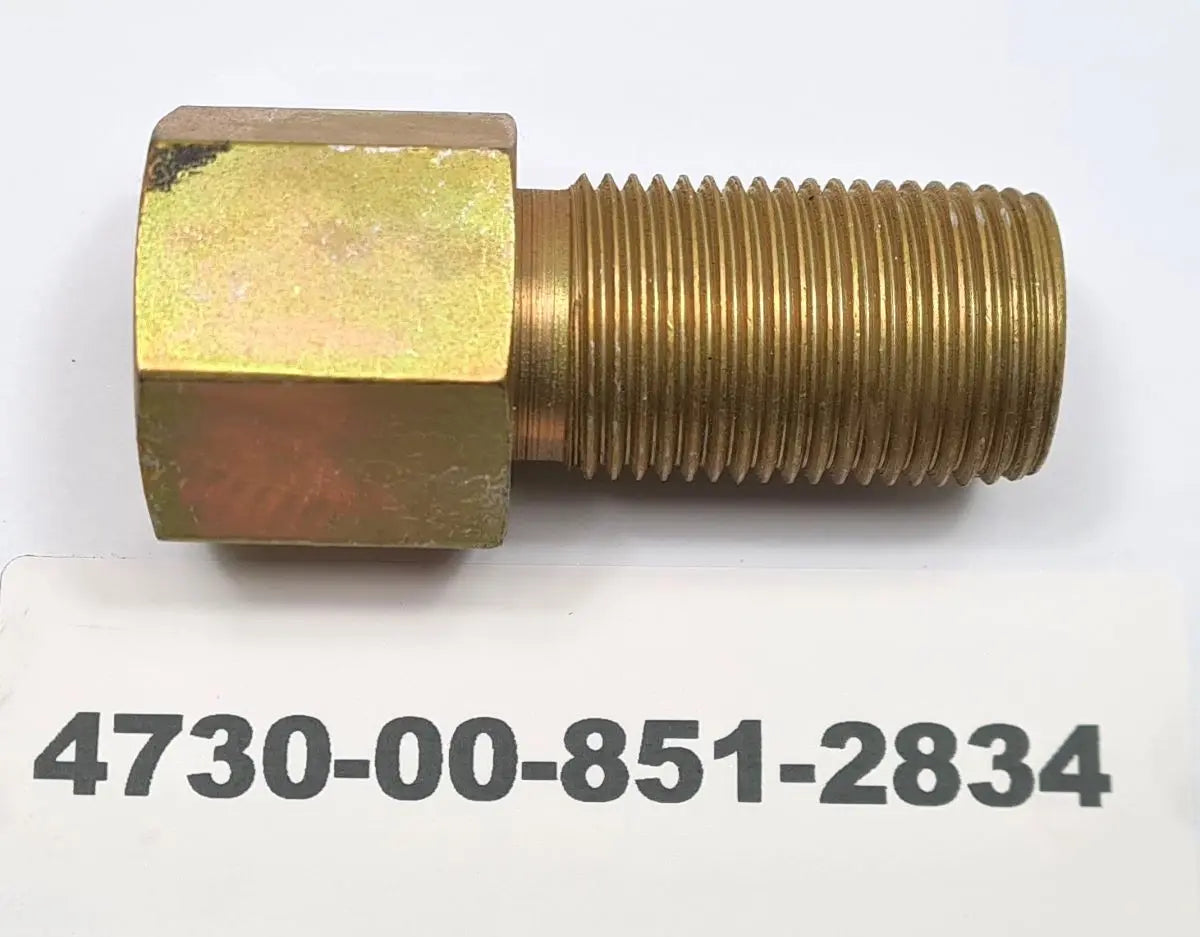

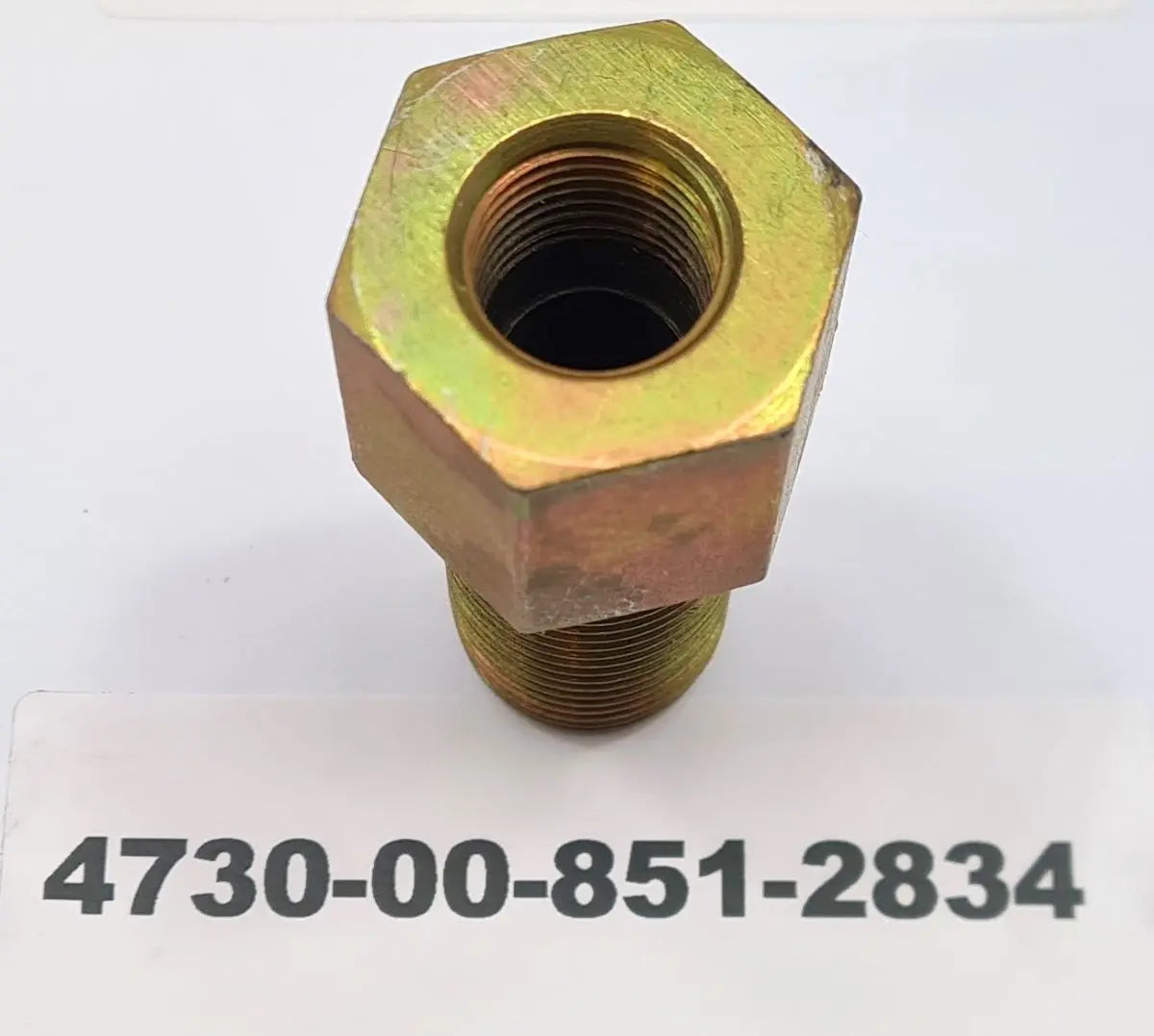

4730-00-851-2834 - Fitting - Straight - Pipe to Tube - 10902493 Self Propelled Howitzer M110A2

Self-Propelled Howitzer 8 Inch M110A2

10902493

4730008512834

008512834

CONNECTION STYLE
(AHNC) PLAIN (PIPE) 1ST END
CONNECTION TYPE
(AWLS) THREADED EXTERNAL TUBE 1ST END
CONNECTION TYPE
(AWLS) THREADED INTERNAL PIPE 2ND END
NOMINAL OVERALL LENGTH
(CWFR) 2.500 INCHES
NOMINAL PIPE SIZE ACCOMMODATED
(AAAR) 0.375 INCHES 2ND END
NOMINAL THREAD SIZE
(CQJX) 0.375 INCHES 2ND END
NOMINAL THREAD SIZE
(CQJX) 0.875 INCHES 1ST END
SEAT ANGLE
(CQRB) 12.0 DEGREES 1ST END
SPECIAL FEATURES
(FEAT) UNDERCUT 0.755 IN. MIN,0.775 IN. MAX DIA,BY 0.190 IN. LG BETWEEN WRENCHING FACILITY AND THREAD
THREAD CLASS
(AAJD) 3A 1ST END
THREAD SERIES DESIGNATOR
(THSD) NPTF 2ND END
THREAD SERIES DESIGNATOR
(THSD) UNF 1ST END
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(STDC) QQ-P-416,TY2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OUTSIDE
SURFACE TREATMENT
(SFTT) CADMIUM OUTSIDE
