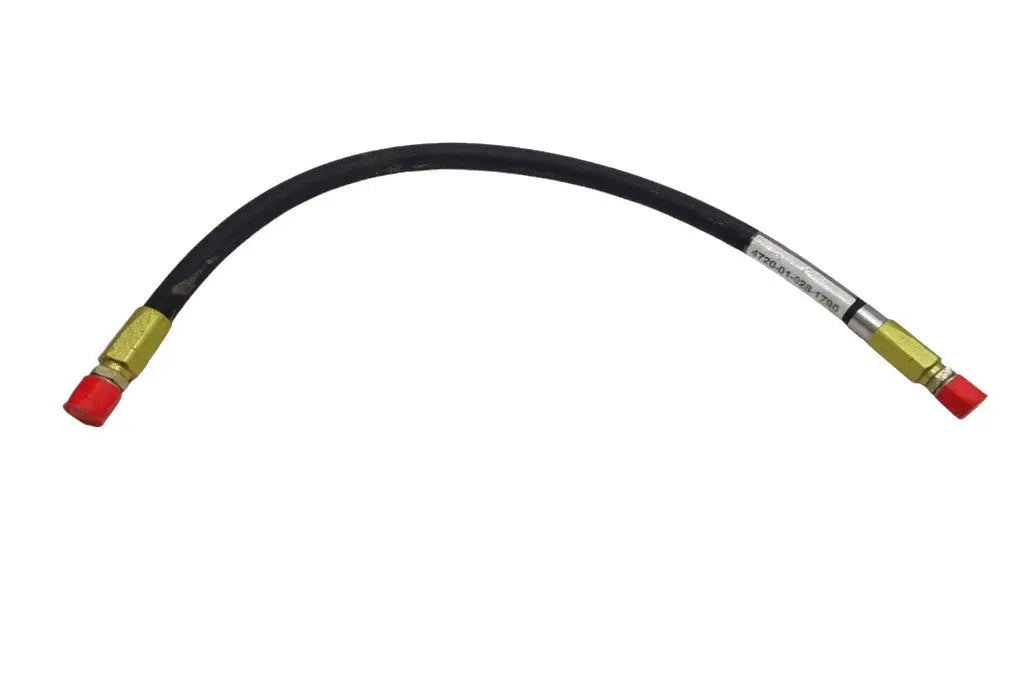

4720-01-028-1790 - Flexible hose assy - DLA700-89-P-E386

MS2876280320

MILDTL8790

MS2876280320

4720010281790

010281790

Technical Characteristics
SECOND END RELATIONSHIP WITH FIRST END
(CQBB) IDENTICAL
LAYER COMPOSITION AND LOCATION
(CQCS) 2ND LAYER BRAIDED WIRE ERR-100
END CONNECTION DESIGN
(AKUU) STRAIGHT 1ST END
BURST TEST PRESSURE
(CQBD) 14000.0 POUNDS PER SQUARE INCH
CONNECTION TYPE
(AWLS) THREADED INTERNAL TUBE 1ST END
CONNECTION STYLE
(AHNC) SWIVEL NUT, FLARELESS 1ST END
CROSS-SECTIONAL SHAPE STYLE
(AAGR) ROUND
EXTERIOR COLOR
(ADJS) BLACK
HYDROSTATIC TEST PRESSURE
(CRDW) 7000.0 POUNDS PER SQUARE INCH
INSIDE DIAMETER
(AARX) 0.438 INCHES NOMINAL
INSIDE SURFACE CONDITION
(CRWL) SMOOTH
LAYER COMPOSITION AND LOCATION
(CQCS) 1ST LAYER BRAIDED WIRE AND 2ND LAYER BRAIDED WIRE AND OUTER LAYER MOLDED RUBBER, CHLOROPRENE
OUTER COVERING ENVIRONMENTAL PROTECTION
(CRJM) ABRASION RESISTANT AND OIL RESISTANT
OUTSIDE DIAMETER
(ABKV) 0.859 INCHES NOMINAL
MAXIMUM OPERATING PRESSURE
(CQGM) 3000.0 POUNDS PER SQUARE INCH
MEASURING METHOD AND LENGTH
(CRXX) 32.000 INCHES NOMINAL WORKING
MEDIA FOR WHICH DESIGNED
(MEDA) FUEL/OIL, HYDROCARBON SINGLE RESPONSE
MINIMUM INSIDE BENDING RADIUS
(ACKH) 5.750 INCHES
NOMINAL THREAD SIZE
(CQJX) 0.750 INCHES 1ST END
SEAT ANGLE
(CQRB) 12.0 DEGREES 1ST END
SPECIFICATION/STANDARD DATA
(ZZZK) 96906-MS28762 GOVERNMENT STANDARD
THREAD CLASS
(AAJD) 3B 1ST END
THREAD DIRECTION
(AAJF) RIGHT-HAND 1ST END
THREAD SERIES DESIGNATOR
(THSD) UNF 1ST END
UNABLE TO DECODE
(ADJM) UNABLE TO DECODE
UNABLE TO DECODE
(CQGH) UNABLE TO DECODE
HOSE OR TUBING SPEC/STD DATA
(ADLF) MIL-H-8788 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).
FIRST END FITTING SPEC/STD DATA
(ADLG) MS28761-8 STANDARD (INCLUDES INDUSTRY OR ASSOCIATION STANDARDS, INDIVIDUAL MANUFACTUREER STANDARDS, ETC.).
LAYER COMPOSITION AND LOCATION
(CQCS) OUTER LAYER MOLDED RUBBER, CHLOROPRENE ERR-100
UNABLE TO DECODE
(CQHW) UNABLE TO DECODE
FIRST END SWIVEL ACTION CAPABILITY
(CQBG) NOT INCLUDED
