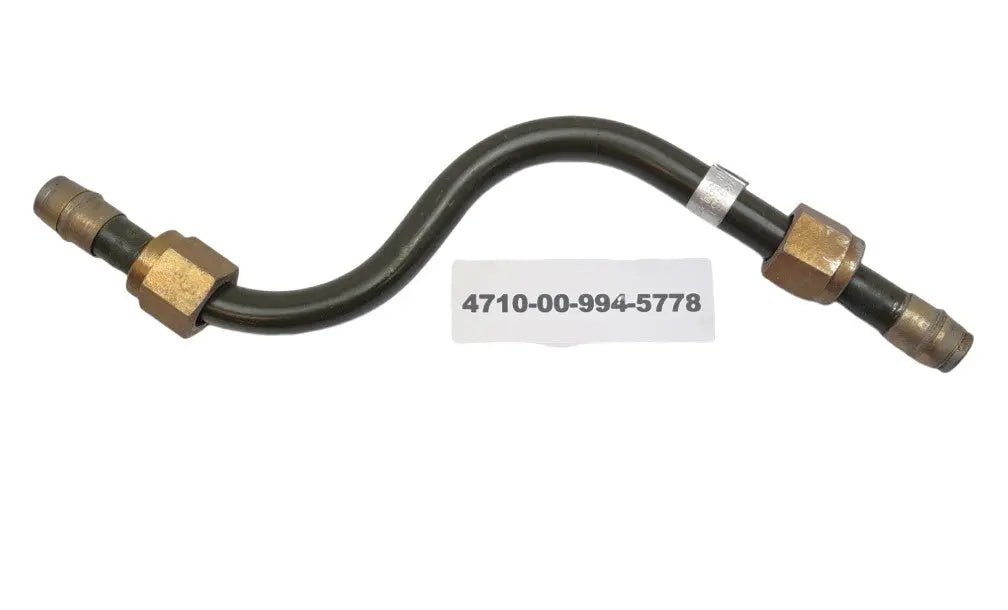

4710-00-994-5778 - Tube Assy - 10934554

10934554

4710009945778

009945778

AAGT    Wall Thickness    0.049 inches nominal
AAJD    Thread Class    3B single end
AAJF    Thread Direction    Right-hand single end
AFQW    Mating End Quantity    2 single end
AHSA    Tubing Material    Steel, MIL-T-3520, type 3, comp 1010 or steel, MIL-T-3520, type 3, comp 1015 or steel, MIL-T-3520, type 3, comp 1020 or steel, MIL-T-3520, type 3, comp 1025
AJFX    End Connection Style    Swivel nut with loose or integral clinch sleeve single end
AJFY    Seat Angle in DEG    12.0 single end
ARJD    Design Form    Prebent
BBYQ    Tube Outside Diameter    0.625 inches nominal
BZRS    End Connection Spec/STD    Mil, MS21921, part no. MS21921-10, mil, MS21922, part no. MS21922-10
CQJX    Nominal Thread Size    0.875 inches single end
MATL    Unable to Decode    Unable to decode
MATT    Material    Steel single end
THSD    Thread Series Designator    Unf single end
