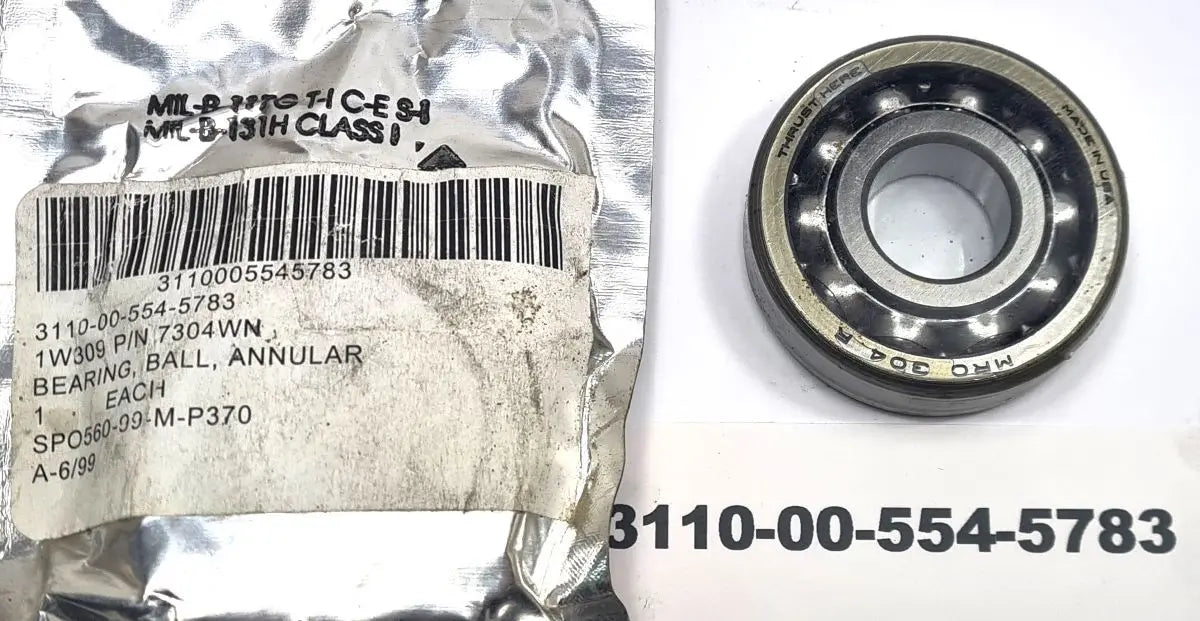

3110-00-554-5783 - Ball Bearing Annular

3110-00-554-5783 - Ball Bearing Annular

Replaced by 3110012007860

17700343

402002

713

7304

TECHNICAL CHARACTERISTICS

BORE DIAMETER
(ABXV) 20.00 MILLIMETERS NOMINAL
BORE SHAPE
(AGZD) STRAIGHT
CONTACT ANGLE
(CTHY) 25.0 DEGREES MINIMUM
OVERALL OUTSIDE DIAMETER
(ADGA) 52.00 MILLIMETERS NOMINAL
OVERALL WIDTH
(ABMK) 15.00 MILLIMETERS NOMINAL
LOAD DIRECTION
(AGZC) ANGULAR
MATERIAL
(MATT) STEEL OVERALL
RETAINER FABRICATION METHOD
(AGYF) PRESSED
STANDARD TOLERANCE DESIGNATION
(CTFZ) ABEC NO.1
STYLE DESIGNATOR
(STYL) COUNTERBORED OUTER RING, NON-SEPARABLE
SURFACE FINISH
(AGYE) GROUND





£28.74
£28.74
Sale Sold out
Weight: 0.138 kg. Dimensions: 5.3 x 5.3 x 1.5cm.
We have 22 in stock
